SERACCESS® MILESTONE 5

Written by: Claudia Bortolussi

Evaluation of the automatic blood sampling, including sample preparation

Authors: C Bortolussi; Dr. S. Gupta; Dr. B. Schär
Securecell AG/ETH Wyss Zurich: Liver4Life group, September 2021

Keywords: Seraccess®, AGM, blood sampling, in vitro experiment



Introduction

Milestone 5 of the project consists of the evaluation of the automatic blood sampling from an existing peripheral catheter and subsequent extraction of plasma using Securecell's proprietary silicon membrane. This trial was conducted at ETH Zurich, which provided access to a regulated blood circuit. It forms the basis for the first preclinical trial in sheep as of Q2 2022, before the first trials in humans can be conducted.



Automatic blood sampling

3 ml of blood were aspirated for each measurement. A small, undiluted blood sample was then taken for automated glucose measurement. Subsequently, the aspirated blood was returned to the blood system with 10 ml of rinsing solution and ultimately to the patient.

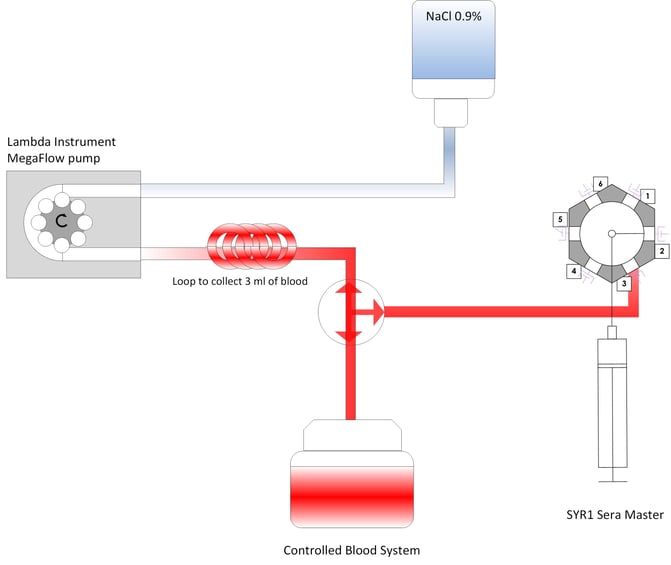

Seraccess_ETH_Wyss_2_SM_Prototype_V2_f6d3fa2385

Automatic sample collection and subsequent extraction of plasma


Closed-loop blood sampling systems, as used in ICUs, return un-used blood to the patient. Blood collection and supplying the collected blood sample to the analyzer or forwarding it to the laboratory occurs manually.

ETH_Wyss_2_bfae79875e

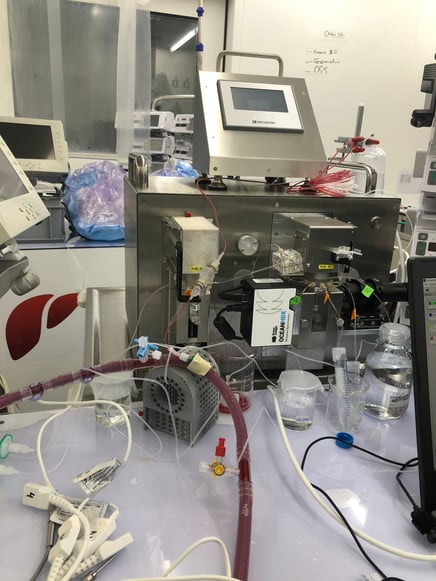

Testsetup at ETH Wyss Zurich



Results

The trial was conducted in collaboration with the Liver4Life group (Wyss Zurich) for one week at ETH in September 2021. The automatic sample collection and subsequent plasma extraction were compared to manual sample collection and to plasma extracted from the sample through centrifugation, determining the glucose concentration in both plasma samples using the Cobas C111.

Picture1_ab7713e718

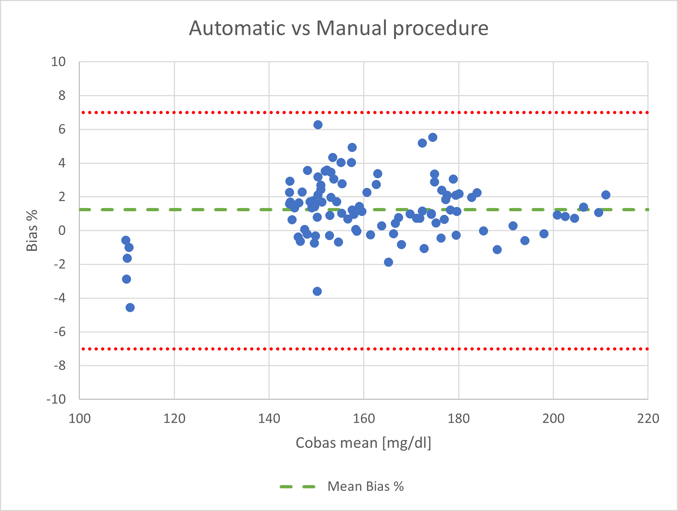

Comparison: automatic vs. manual dilution


The congruence between automatic and manual blood collection, including sample preparation, was evaluated using a tolerance interval analysis based on the measured glucose concentrations. This analysis shows strong congruence, with 95% of the data points within -2.1 and 4.6%. The bias, the mean deviation of the newly developed automated process compared to the reference method, is 1.3%. The manual method can therefore be replaced by the newly developed automatic blood collection.

Milestone 5 was successfully completed. The automatic blood sampling from an existing peripheral catheter, including sample preparation (plasma filtration through the patented silicon membrane), is on par with the classical manual method, the bias is 1.3%. Together with milestone 4 (SeraMaster - intravenous blood glucose measurement versus Cobas C111 - as reference), it forms the basis for the first preclinical trial in sheep as of Q2 2022.
