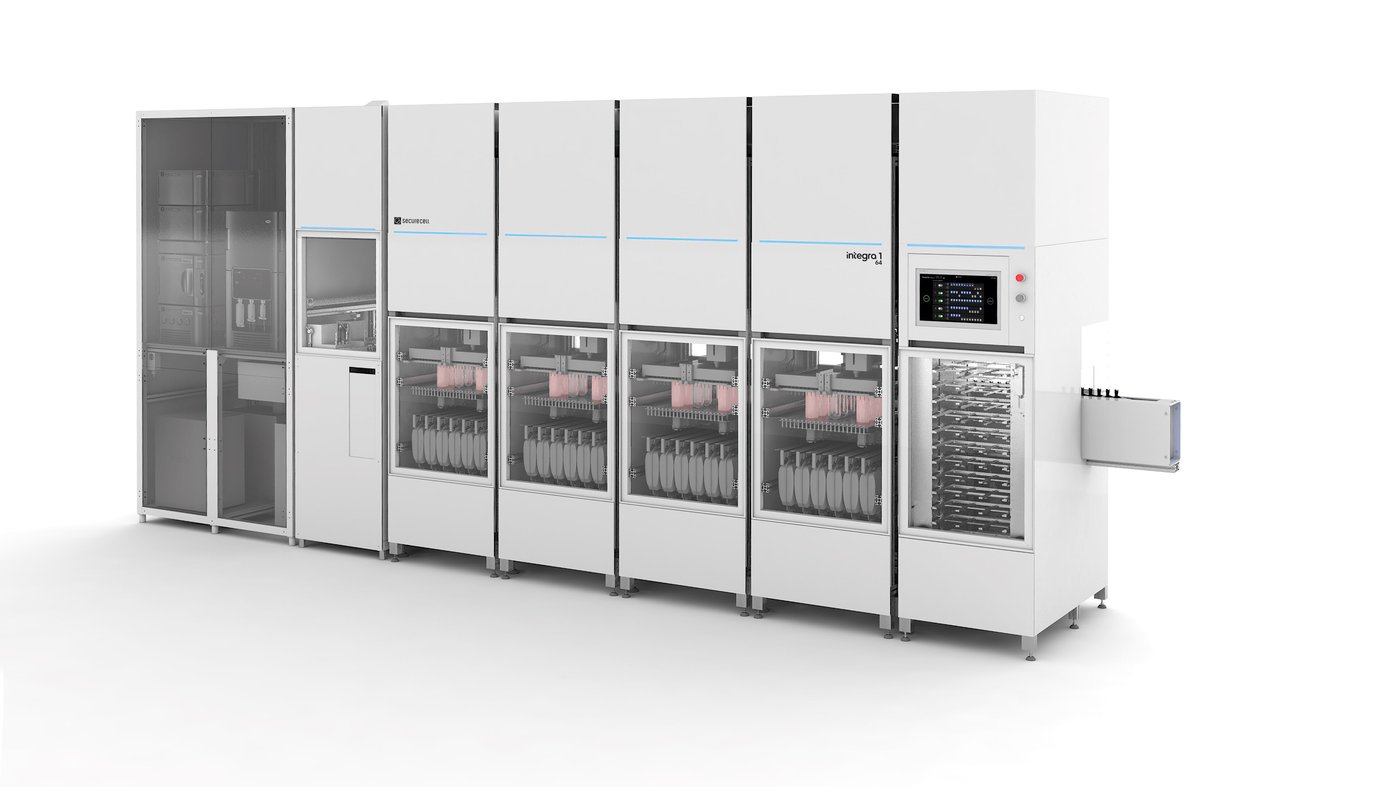

Integra1 64

True High-Throughput Bioprocessing

The next generation of multi-parallel bioprocessing is here, integrating automated USP, DSP, and PAT into one complete system.

RAM2_Set_frnt_whtC

Meet the Integra1 64, a system perfectly suited for bioprocess development and micro to small and mid-scale production in the CDMO space. The 64 is a seminal technology specifically designed to bring ATMPs to market within the most demanding timeframes possible by eliminating costly hiccups associated with the leading multi-parallel system(s) available today.

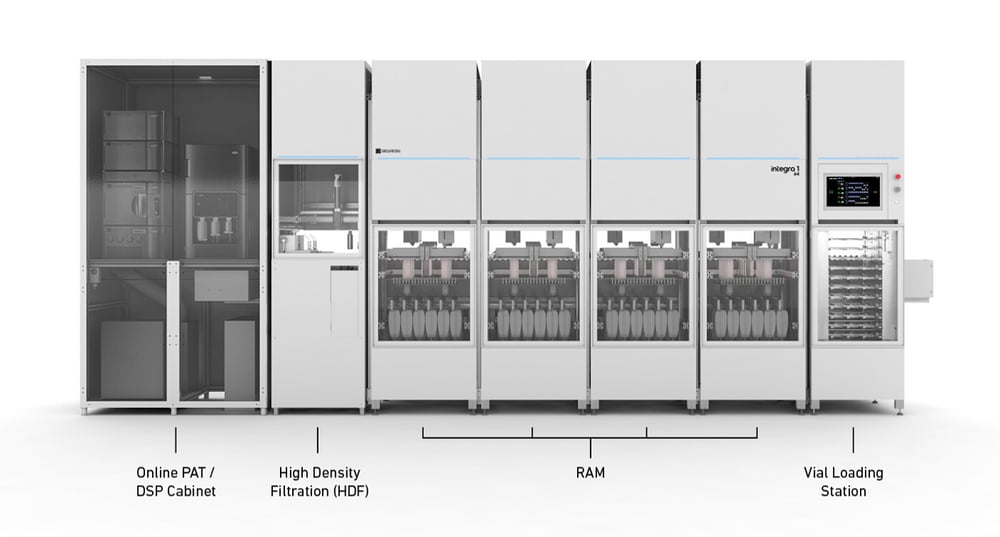

64 full-function bioreactors working in perfect unison

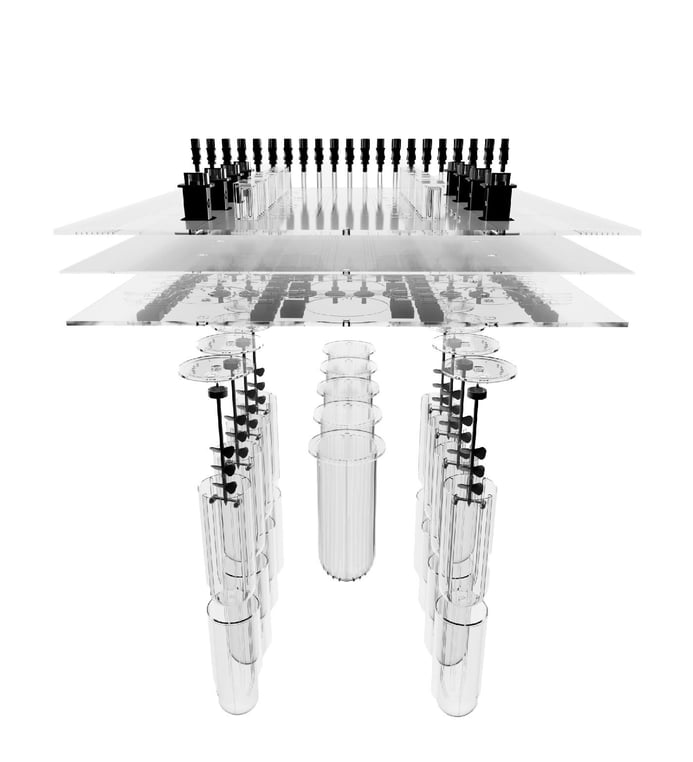

Each Integra1 64 system hosts 8 RAM (Reactor Array Modules) for unprecedented high-throughput performance and systematic variable control.

MicrosoftTeams-image (8)-1

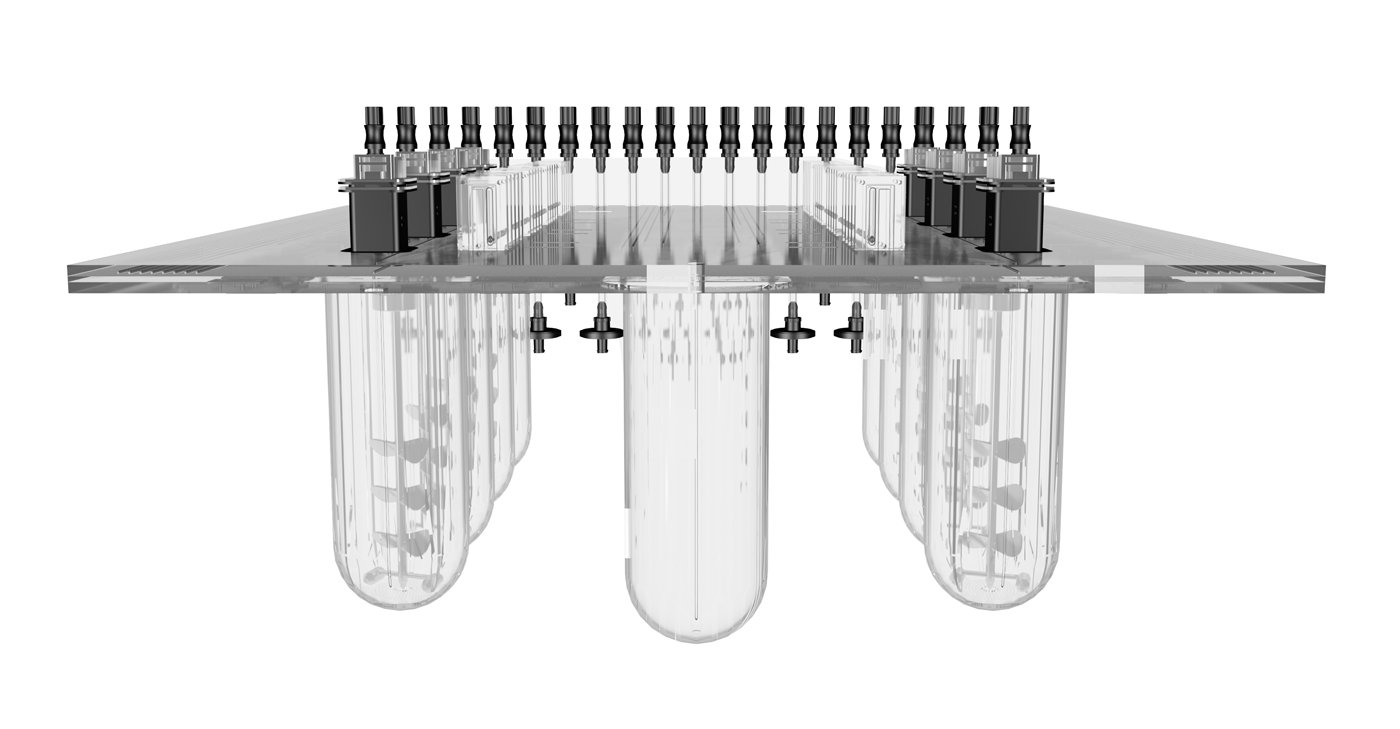

Each RAM Module Features

  • 8 Bioreactors
  • 5 Supply Vessels
  • 180ml working volume per reactor (total volume 300ml)
  • Liquid and gas control via transfer layer
  • Sterile connections for all liquids and gases
  • Sterile sampling port for each bioreactor

Each Inetrga1 64 Features

  • 8 RAM Modules; 64 Bioreactors in total
  • Full control of each bioreactor without compromise
  • Fully integrated PAT and DSP workflows

Supported Processes

  • Batch and Fedbacth
  • Perfusion
  • Cascaded Bioreaction

Ideally Suited for

  • Clone Selection
  • Early phase process parameter optimization
  • Micro-production and DSP-development
Schedule a demonstration of Integra1 64's capabilities

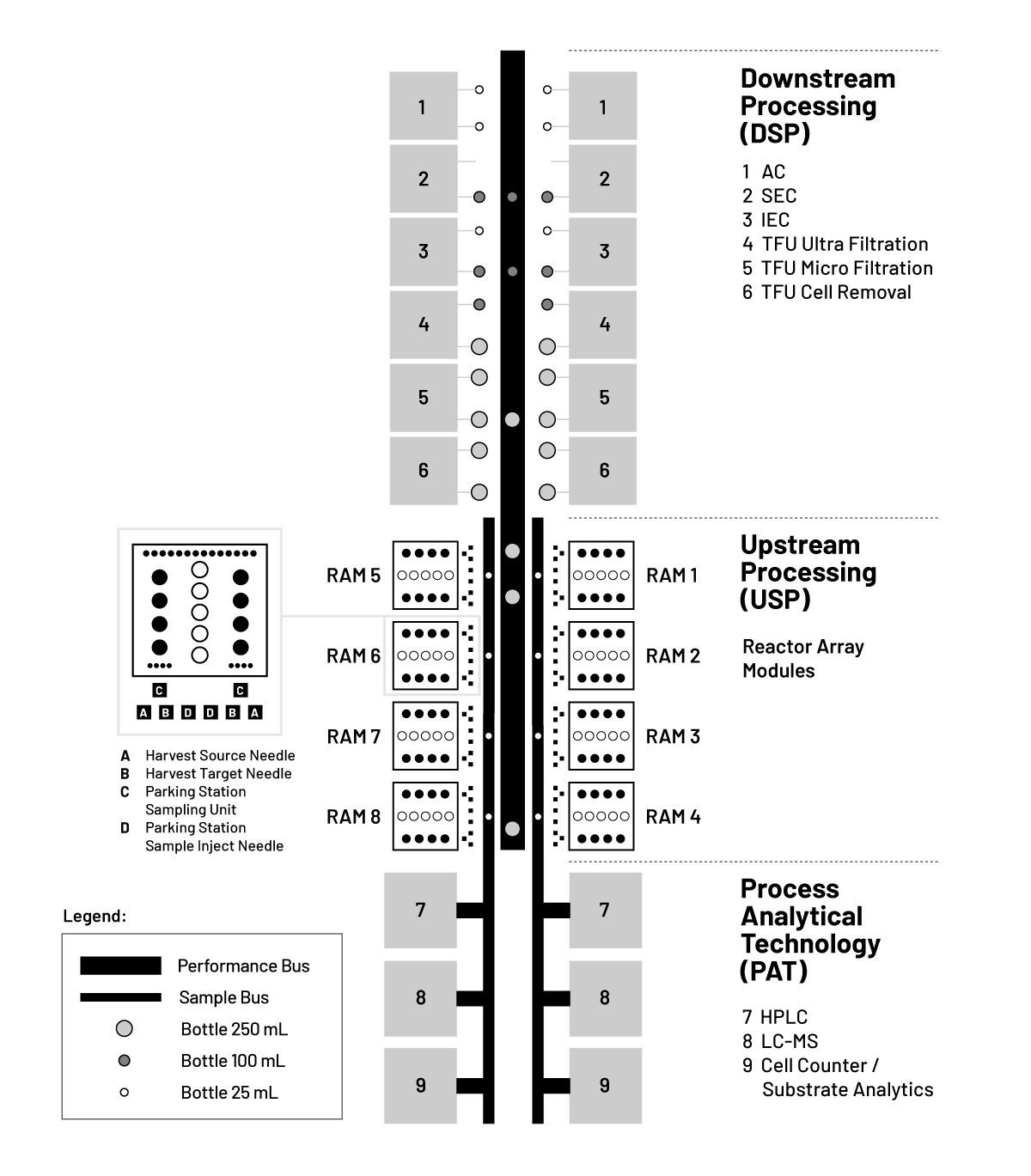

Fully integrated workflows for both online PAT and DSP automation

DSP_DIAGRAM_A5(Functional diagram, not proportional to design layout)



Cost savings up to 2X within 10 years compared to other high-throughput systems

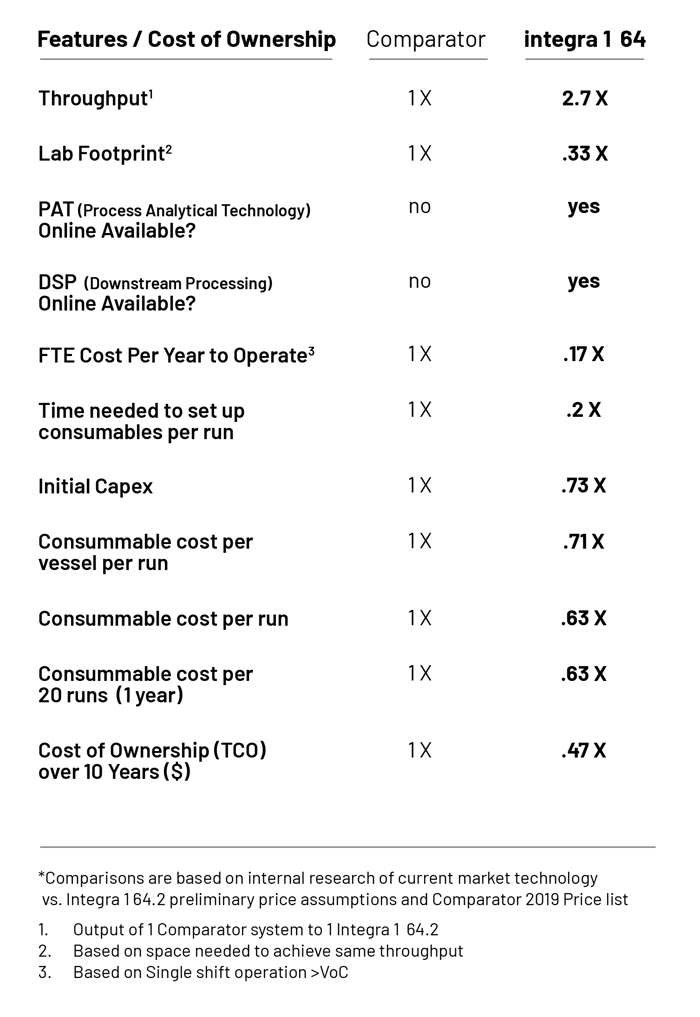

Feature and cost comparison of Integra1 64 to the leading MPB (multi-parallel bioreactor) system*

TableG



  • integraone-production-short
    IntegraOne Produktion (kurz)

    In diesem kurzen Video erfahren Sie kurz und bündig, wie IntegraOne die kleine bis mittlere Produktion in der Biopharmazie verändert.

  • integraone-production-long
    IntegraOne Produktion (lang)

    In diesem umfassenden Video erfahren Sie, wie IntegraOne die kleine bis mittlere Produktion in der Biopharmazie verändert.

  • integraone-development
    IntegraOne Entwicklung

    In diesem umfassenden Video erfahren Sie, wie IntegraOne die Produktivität in der Bioprozessentwicklung drastisch erhöht.

Schedule a visit to see the Integra1 Show Lab in person, or contact us to discuss the future of your lab.
